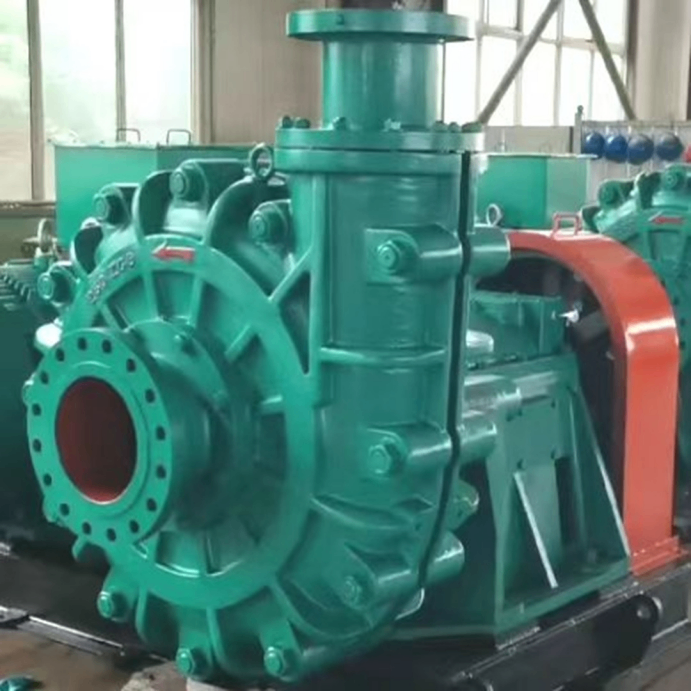

300HS-TU Slurry pump

Home ◇ PRODUCTS ◇ Slurry pump ◇ HS Series

Model : 300HS-TU

Capacity : 1260~2772 m³/h

weight : 6409 KG

for : 300HS-TU

Head : 13~63 m

HPSH : 3~10 m

Theory : Centrifugal

Material : Cr26

Type : Packing/ Expeller/ mechanical

Connection : CRZ/DCZ/CV/ZVZ

Use for : 300HS-TU

Quotation Buy now Contact

More Model : 450HS-TU 350HS-TU 250HS-ST 75HS-C 75HHS-E 40HS-B 150HHS-S-A 100HHS-S 200HS-ST 150HS-R 50HHS-C 25HHS-C

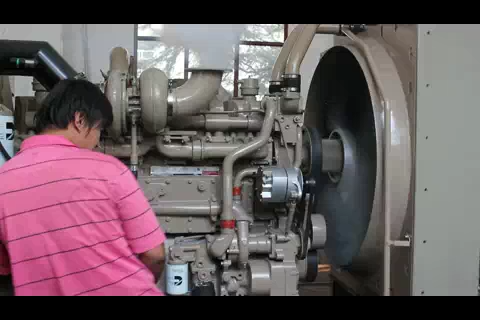

Product production process

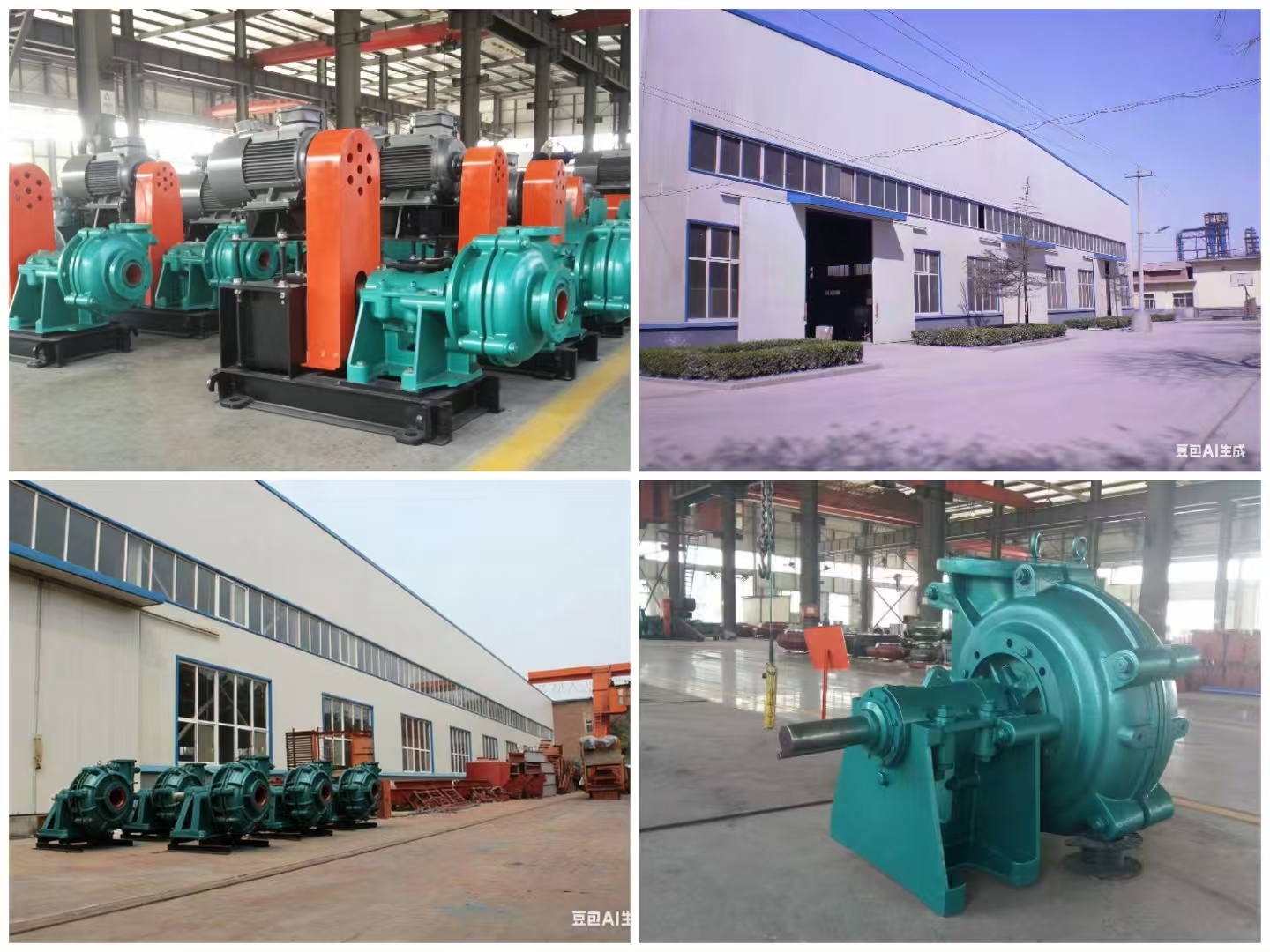

Know your supplier

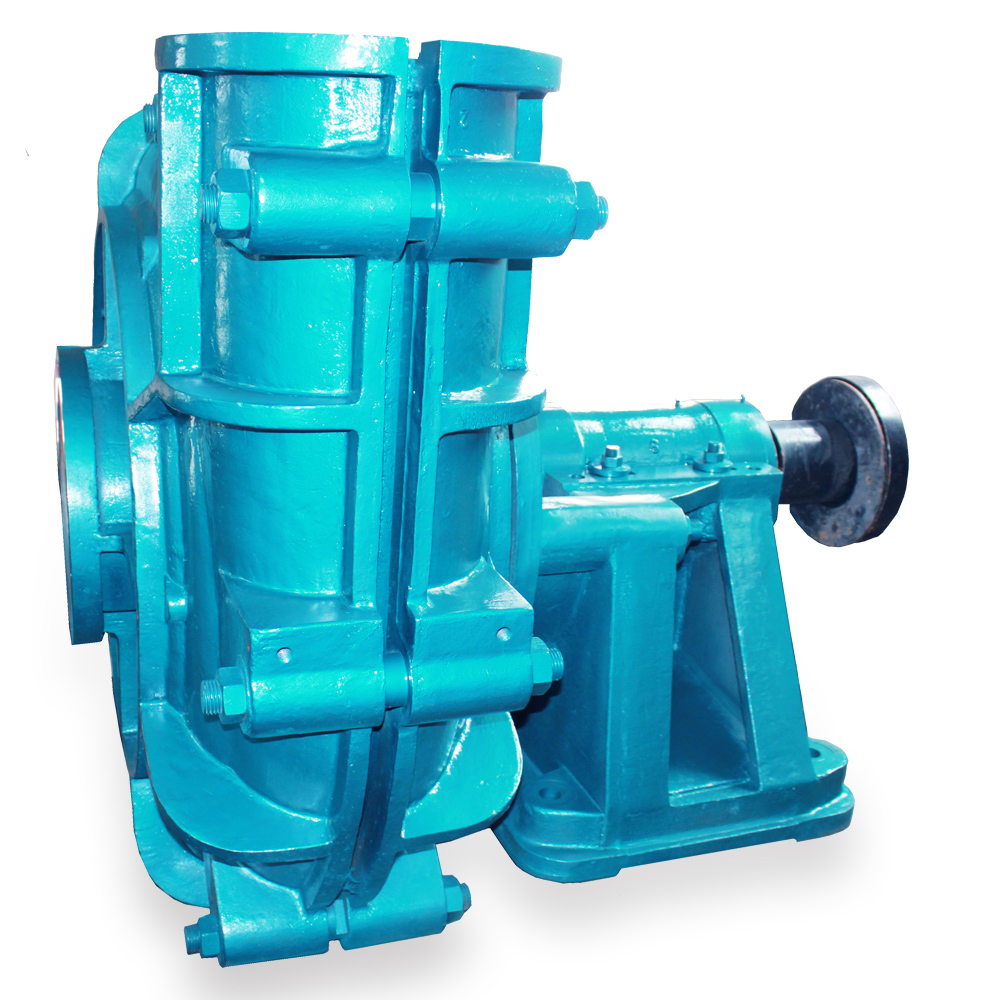

The Cr26 Chromium Iron Alloy HS Series Slurry Pump, engineered for high-wear and high-corrosion environments, is a high-efficiency wear-resistant pump. Manufactured with advanced Cr26 chromium iron alloy through precision casting, its flow components exhibit exceptional wear and corrosion resistance, significantly extending equipment lifespan. Compared to traditional material pumps, this design increases service life by several to dozens of times while optimizing hydrodynamic performance to enhance conveying efficiency and operational stability. Widely applicable in heavy industries including metallurgy, mining, power, chemical, petroleum, and paper manufacturing, it ensures long-term stable operation under complex conditions.

Product Features

Key attributes

application	Water Treatment Solutions	pressure	Other
customized support	OEM	warranty	2 Years
place of origin	OEM	power source	Electric
structure	Single-stage Pump	model number	HS
brand name	HEAVY	Pressure	High Pressure
Theory	Centrifugal Pump	StandardorNonstandard	Standard
Design	Traditional submersible sand pump	Material	Cr26
Factory experience	15 years direct factory	Centificate	ISO9001 CE
Warranty	1year	Usage	submersible sand pump

Lead time/On-time delivery

5.0	★★★★★	Very satisfied	Supplier service	5.0
			On-time shipment	5.0
			Product quality	5.0

Quality Control and After-sales Service System This section will elaborate on the quality control measures for the production process of the Cr26 ferrochromium alloy cast HS series slurry pump, including raw material procurement standards, production process control, key component testing methods, finished product inspection and performance testing, as well as quality management system certification. It also covers the construction of the after-sales service system, including customer service network construction, technical support team configuration, product warranty policy, installation and commissioning services, spare parts supply mechanism, and customer feedback processing mechanism, to ensure the reliability and stability of the product during use, enhance customer satisfaction, and improve market competitiveness

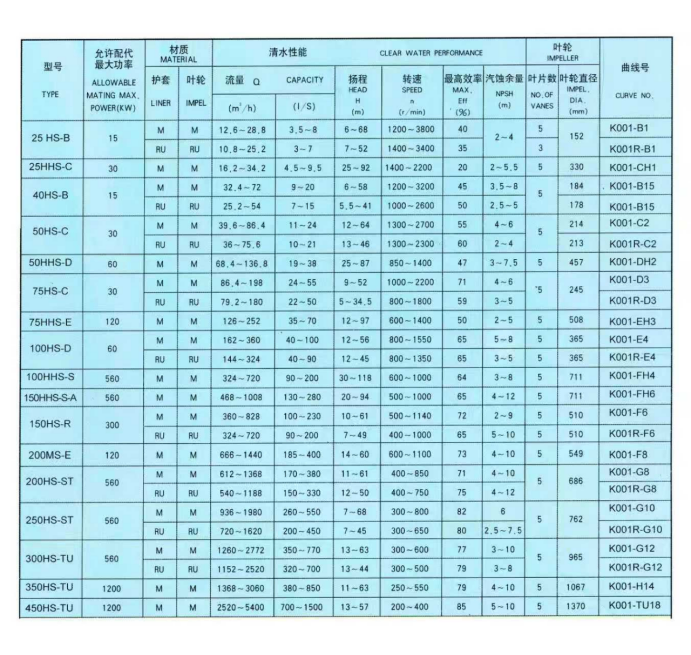

HS Selection Chart and Performance

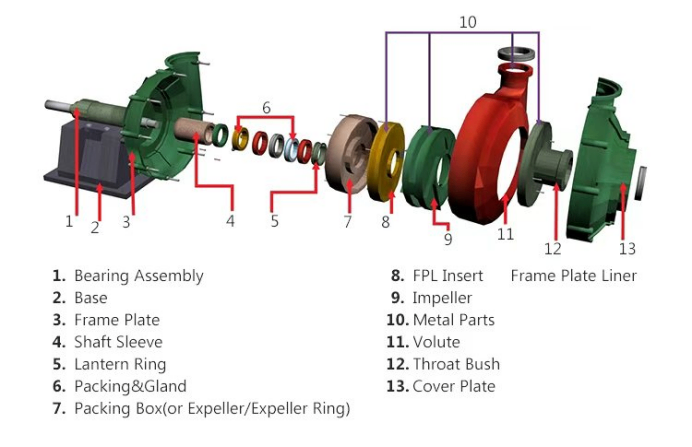

HS on composition

Product application

Analysis of Industry Application Fields: The HS series slurry pump, due to its excellent abrasion and corrosion resistance, has been widely used in various industries such as metallurgy, mining, power, chemical, petroleum, and paper-making. It performs exceptionally well under high wear and corrosion conditions, effectively extending equipment service life, reducing maintenance costs, and enhancing overall operational efficiency. In the mining industry, it is used for slurry conveying; in the power industry, for desulfurization systems; in the chemical industry, for acid and alkali liquid conveying; and in the petroleum industry, for oil sand processing. In the paper-making industry, it is used for pulp conveying, among other broad application scenarios. It provides customers with efficient and reliable professional solutions

try, for oil sand processing. In the paper-making industry, it is used for pulp conveying, among other broad application scenarios. It provides customers with efficient and reliable professional solutions.

Model	M/R	Performance						Impeller Dia(mm)
		Capacity(m³/h)	Head（m）	Speed(rpm)	Eff(%)	Power(KW)	NPSH(m)
25HS-B	M	12.6～28.8	6～68	1200～3800	40	15	2～4	152
	R	10.8～25.2	7～52	1400～3400	35
25HHS-C	M	16.2～34.2	25～92	1400～2200	20	30	2～5.5	330
40HS-B	M	32.4～72	6～58	1200～3200	45	15	3.5～8	184
	R	25.2～54	5.5～41	1000～2600	50		2.5～5	178
50HS-C	M	39.6～86.4	12～64	1300～2700	55	30	4～6	214
	R	36～75.6	13～46	1300～2300	60		2～4	213
50HHS-D	M	68.4～136.8	25～87	850～1400	47	60	3～7.5	457
75HS-C	M	86.4～198	9～52	1000～2200	71	30	4～6	245
	R	79.2～180	5～34.5	800～1800	59		3～5
75HHS-E	M	126～252	12～97	600～1400	50	120	2～5	508
100HS-D	M	162～360	12～56	800～1550	65	60	5～8	365
	R	144～324	12～45	800～1350	65		3～5
100HHS-S	M	324～720	30～118	600～1000	64	560	3～8	711
150HHS-S-A	M	468～1008	20～94	500～1000	65	560	4～12	711
150HS-R	M	360～828	10～61	500～1140	72	300	2～9	510
	R	324～720	7～49	400～1000	65		5～10
200MS-E	M	666～1440	14～60	600～1100	73	120	4～10	549
200HS-ST	M	612～1368	11～61	400～850	71	560	4～10	686
	R	540～1188	12～50	400～750	75		4～12
250HS-ST	M	936～1980	7～68	300～800	82	560	2～8	762
	R	720～1620	7～45	300～650	80		2.5～7.5
300HS-TU	M	1260～2772	13～63	300～600	77	560	3～10	965
	R	1152～2520	13～44	300～500	79		3～8
350HS-TU	M	1368～3060	11～63	250～550	79	1200	4～10	1067
450HS-TU	M	2520～5400	13～57	200～400	85	1200	5～10	1370

Product performance

The slurry pump has the following characteristics: it is capable of conveying high-concentration fluids. Specifically designed for conveying mixtures of solid particles and chemical substances at high concentrations, the slurry pump can handle the conveyance of high-concentration fluids resulting from the mixing of liquids and solids. This makes it widely used in industries such as coal, chemical, metallurgical, and construction.
Efficient hydraulic performance: The slurry pump boasts excellent hydraulic performance, characterized by high efficiency and low wear rate. It can effectively transport slurry media with high concentration and hard particle content.
Superior anti-clogging performance: The flow passage of the slurry pump is relatively wide, which can effectively resist clogging issues and maintain stable conveying capacity. In addition, the slurry pump also exhibits excellent cavitation resistance
Bearing cooling and lubrication system: The slurry pump is equipped with a properly designed lubrication and cooling system to ensure the bearings operate normally at low temperatures and extend the service life of the pump.
Wear-resistant material: The flow-through components of the slurry pump are made of special wear-resistant materials, which exhibit excellent wear and corrosion resistance. After undergoing special treatment, their range of application is further expanded.
Diverse pump head structures: The pump body and cover of the slurry pump are equipped with replaceable wear-resistant metal liners. The flow-passing components such as the sheath, impeller, and guard plate are made of high-chromium wear-resistant metal. Different types of slurry pumps also offer flexibility, such as adjusting the outlet position and rotating for installation and use.
Diverse material options: To cater to the needs of various conveying media and ensure a long service life, slurry pumps are constructed with corrosion-resistant materials such as stainless steel, titanium, and acrylic-coated plastics.
Mechatronic design: The slurry pump adopts a direct coaxial connection between the pump and the motor, achieving mechatronic integration, which makes the pump structure compact and easy to operate.
In summary, slurry pumps are widely used in the power, metallurgical, coal, and other industries due to their high hydraulic performance, good anti-blocking performance, reliable sealing performance, wear-resistant materials, and diverse pump head structures.

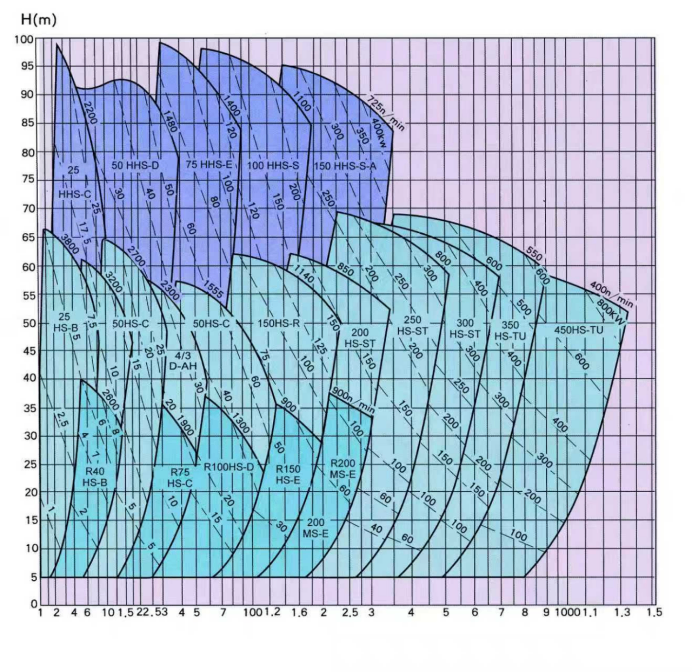

HS Curve
